Piper PA-28 Series Spinners

---

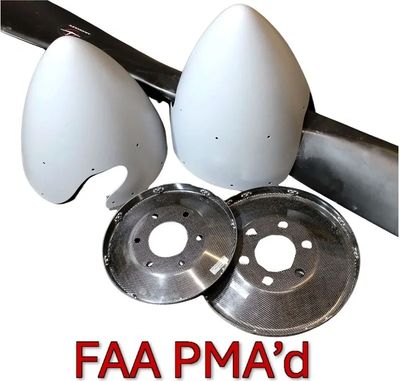

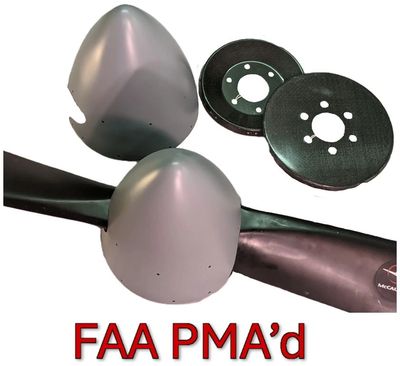

For Piper PA-28-140 aircraft, with O-320 engines.  This composite spinner assembly replaces Piper Spinner assembly 35323, 36850, 14422-A (14422-000) spinners or McCauley Spinner D3339.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For aircraft SN 28-20001 thru 28-26946, 28-7125001 thru 28-7725290 or with STC SA3415WE, SA3995WE, SA483CE installed, select ATAD Kit number P002-1247130-A021.

For Piper PA-28-140 aircraft, with O-360 engines.  This composite spinner assembly replaces Piper Spinner assembly 35323, 36850, 64336,14422-B (14422) spinners.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For aircraft with STC SA0805NE installed, select ATAD Kit number P002-1247130-A001.

For Piper PA-28-140 aircraft, with O-360 engines & propellers with 1.25" spacer.  This composite spinner assembly replaces Piper Spinner assembly 63760-04, 65805-00, D-3328 spinners.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust 1fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For aircraft with STC SA10207SC or SA793CE installed, select ATAD Kit number P002-1247130-A011.

For Piper PA-28-150 & PA-28-151 series aircraft, with O-320 engines.  This composite spinner assembly replaces Piper Spinner assembly 35323, 36850, 14422-A (14422-000) spinners or McCauley Spinner D3339.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For PA-28-150 aircraft SN's 28-1 thru 28-4377, 28-3, 28-1760A or with STC SA483CE installed, or PA-28-151 aircraft SN's 28-7415001 thru 28-7715314 or with STC SA995NW,  installed, select ATAD Kit number P002-1247130-A021.

For Piper PA-28-151 aircraft, with O-360 engines & propellers.  This composite spinner assembly replaces Piper Spinner assembly 35323, 36850, 64336,14422-B (14422) spinners.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust 1fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For aircraft SN 28-7415001 thru 28-7715314, or with STC SA1842NM, SA2946SO installed, select ATAD Kit number P002-1247130-A001.

For Piper PA-28-150 & PA-28-151 series aircraft, with O-360 engines & propellers with 1.25" spacer.  This composite spinner assembly replaces Piper Spinner assembly 63760-04, 65805-00, D-3328 spinners.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust 1fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For PA-28-150 & PA-28-151 series aircraft with STC SA793CE installed, select ATAD Kit number P002-1247130-A011.

For Piper PA-28-160 & PA-28-161 series aircraft, with O-320 engines.  This composite spinner assembly replaces Piper Spinner assembly 35323, 36850, 14422-00 (14422) spinners or McCauley Spinner D3339.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For PA-28-160 aircraft SN's SN 28-1 thru 28-4377, 28-1760A, or PA-28-161 aircraft SN's SN 28-7716001 thru 28-8216300, 2841001 thru 2841365, or PA-28S-160 SN's 28-1 thru 28-1760, 28-1760A, 28-3 select ATAD Kit number P002-1247130-A021.

For Piper PA-28-161 series aircraft, with O-360 engines & propellers.  This composite spinner assembly replaces Piper Spinner assembly 35323, 36850, 64336,14422-B (14422) spinners.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust 1fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For aircraft  SN's 28-7716001 thru 28-8216300, and 2841001 thru 2841365, or with STC SA1842NM, SA2946SO SN 28-671 thru 28-1760 and 28-1760A (except S/N 28-1571 and S/N 28-1573) installed, select ATAD Kit number P002-1247130-A001.

For Piper PA-28-180 aircraft, with O-360 engines & propellers.  This composite spinner assembly replaces Piper Spinner assembly 35323, 36850, 64336,14422-B (14422) spinners.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust 1fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For this aircraft, select ATAD Kit number P002-1247130-A001.

For Piper PA-28-180 & PA-28-181 series aircraft, with O-360 engines & propellers with 1.25" spacer.  This composite spinner assembly replaces Piper Spinner assembly 63760-04, 65805-00, D-3328 spinners.  Our high quality composite spinner assemblies are are comprised of high strength carbon fiber bulkheads and a robust 1fiberglass spinner dome.  This assembly is delivered as a kit with installation instructions, maintenance instructions, Airworthiness Tag (8130-3).  A fastener kit may also be added to your order during checkout to simplify your installation effort.  For aircraft PA-28-180 S/N's 28-1761 thru 28-5859, 28-7105001 thru 28-7105234, or with STC SA27CH installed, select ATAD Kit number P002-1247130-A011.  For aircraft PA-28-181 S/N's 28-7690001 through 28-8690056; 28-8690061; 28-8690062; and 2890001 through 2890205, or with STC SA27CH, SA779NE installed, also select ATAD Kit number P002-1247130-A011.
